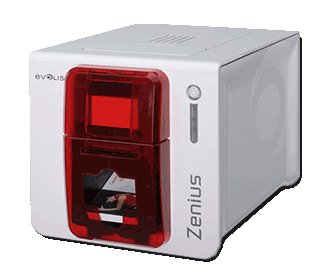

Zenius

User-friendly, compact and cost-effective solution

Description
Zenius printers produce professional results thanks to the 300 dpi resolution and edge to edge printing. Your logos, photos, barcodes and text are rendered perfectly on your cards, conveying a positive image of your organization.

Scalability

Zenius is incredibly flexible. Suitable for multiple applications, the «Expert» version of the printer features combinable encoding functions: magnetic encoding, contact and contactless chips. It takes just a few minutes to install these modules!

Lasting investment

Zenius printers undergo quality and compliance testing to guarantee their robustness and performance, so you can be sure that your investment will last. What’s more, Evolis offers an extended warranty option for extra peace of mind.

Key Strengths

  • Flexible paper selection from 250 sheet main drawer and 100 sheet bypass
  • Duplex feature allows you to print on both sides of a sheet, cutting your costs
  • Customise two short-cut keys for frequently performed tasks
  • Additional paper drawers option allows longer, uninterrupted print runs
General Specifications

General features

  • Direct-to-card dye-sublimation/Resin thermal transfer
  • Single-sided printing, edge-to-edge
  • 300 dpi print head (11.8 dots/mm)
  • 16 million colors
  • 16MB memory (RAM), 32 MB for the Expert version
  • Colors available: fire red & grey brown



Printing performances

  • Color (YMCKO): 120 – 150 cards/hour1
  • Monochrome: 400 – 500 cards/hour



Additional encoding modules

  • Available modules on the Expert version:
    • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
    • Smart contact station ISO 7816-2
    • Contact smart card encoder – PC/SC, EMV 2000-1
    • Contactless smart card encoder – ISO 14443A, B, ISO15693, Mifare, DesFire, HID iCLASS
    • Other specific encoders upon request
  • Internal USB ports
  • Options can be combined
  • Factory-installed or installed on-site



Interfaces

  • USB (1.0, 1.1, 2.0, 3.0), cable supplied
  • Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led) on the Expert version

Safety

  • Support for Kensington® security lock
  • Data encryption for magnetic encoding

Display

  • Printer LEDs
  • Graphical notifications from the printer2: cleaning alerts, empty/low level ribbon alert, etc.



Card management and specifications

  • Automatic or manual feeding
  • Feeder capacity: 50 cards (0.76 mm – 30 mil)
  • Output hopper capacity: 20 cards (0.76 mm – 30 mil)
  • Card thickness: 0.25 to 0.76 mm (10 to 30 mil), gauge adjustment
  • Card types:
    • PVC cards
    • Composite PVC cards
    • PET cards
    • ABS cards1
    • Special varnished cards1
  • Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)

Evolis High Trust® ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

  • Automatic identification and setting
  • Delivered in a drop-in cassette for easy handling
  • Ribbon saver for monochrome printing



Software

  • Delivered with Evolis Premium Suite® for Windows®:
    • Printer driver
    • Evolis Print Center for printer administration and settings
    • Evolis Printer Manager for graphical notification3
    • 24/7 online support
    • Compatible with Windows® (32/64 bits): XP SP3, Vista,W7, W8, W10
  • Delivered with cardPresso XXS Lite for designing and editing badges:
    • Internal database up to 50 records
    • Windows® (from XP onwards) and Mac OS X
  • Delivered with a driver for Mac OS X (from 10.5 onwards)
  • Linux OS upon request
  • Evolis Premium SDK for remote supervision of the printer, while facilitating and speeding up integrationinto IT systems



Eco-friendly design, certifications and statement of compliance

  • Standby, sleep modes & reduced energy consumption
  • CE, FCC, IEC, VCCI, CCC, KC, BIS, EAC
  • RoHS



Size and weight

  • Size (H x W x D): 195 x 205 x 315 mm (7.68’’ x 8.07’’ x 12.4’’)
  • Weight: 3.3kg (7.3lbs)





Warranty

  • 2-year warranty (printer and printhead)4
  • Warranty extension available as an option



1 Under specific conditions / 2 Depends on the Windows® version  / 3 Requires the .net 4.0 client profile version / 4 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons.
